VCDX Prep Advice Series – The design scenario

For every VCDX round, I normally run unofficial face to face mock as the last hurdle and prep for all those defending the VCDX that round in the UK and for anyone wanting to come to assist with the mocks and learn from them. I have run these for a number of years and have got really great feedback from them but last year alike to so many things I was unable to run any due to Covid and who knows if I can this year. So I thought I would do an updated series of postings around the advice I normally give in these mocks, advice I give in the VCDXPrepGroup slack channel I founded and run and link to postings where I summarised previous advice. I will break the series into distinct areas along the path to VCDX to try help people wherever they are along the path *NOTE* All advice here is keeping within NDA’s and despite me now being a VCDX panellist it is the same as when I wasn’t one.

The design scenario is the portion of the defence after you have defended your design. This is where the panellists now become your customer and is where you show how you can get the information from the scenario slides and the panellists to get a logical design laid out.

From my experience doing mocks for the last number of years, it is the part that most people either run out of time to prepare for or underestimate the importance of this piece of the defence. The design scenario shows your panellists that if they, for example, couldn’t attend a customer design meeting, they could confidently send you, and you will get the information required from the customer and have a logical diagram/design that you can send to them post the meeting.

When I was preparing for my defence for my second attempt, I spent countless hours planning out how I wanted to ask my questions and how I wanted to layout my whiteboard to show my skills and ensure I showed a journey to my “customers”. The method I used (Note: I practiced loads by myself to see what worked for me, so certainly try out what works for you best) is one that Rene van den Bedem and Larus Hjartarson and I had done together when we were part of each others study groups. They were two of my mentors for my second attempt.

  • I had a list of questions I wanted to ask for each pillar of the blueprint (my list is old for some things as it was for vSphere 5.x), as this allowed me to get the information I wanted. I always did that gave me confidence as if I was doing another mock scenario.
  • I made a list of conceptual questions that I would go through again like a “script” as I wanted to drum into my mind all the pieces I wanted to ask so that I could go into that automatic mode when under pressure. It is in the second part of this posting.
  • The best method IMO is one blogged about by Rene van den Bedem. Rene created this when preparing for his second VCDX attempt, and I was preparing for my first. The questions and whiteboard layout are great ideas and allow you to collect and record information whilst allowing the panellists to see your thinking and your essential whiteboarding skills.
  • Stemming off of Rene’s method above Larus Hjartarson, who had Rene as his mentor, took the technique one step further and blogged about it here. I used Larus’ method in my second defence preparations and recommend it highly as it allows you to show your skills and get your diagrams logically drawn up on the whiteboard by the end.
  • Get yourself a whiteboard and practise it again and again and again. There are several example design scenarios out there that you can use and adapt. I would use some as a starting point but would change the answers I was expecting the panellists were giving me or changing the answer they gave me halfway through to practice how I could look at what I had written down and drawn and change it due to that requirement change. Indeed, practice talking about what you are doing on the board and continually ask questions to try to gleam out information. Make sure you have good reasons to ask those questions, as sometimes the panellists who are role-playing as customers might have to email someone to get the answer to your question.
  • The design scenario is the place where you want to try to score points in places you felt you didn’t in the previous phase of the defence, so when I’ve done loads of mocks in the past, I see far too often people trying to recreate the design they submitted. Now I’m not saying don’t use some skills you learnt from your design, and if, for example, you had HCI in your design and the precise method for the scenario is taking you down that route, then not to do that but try show you know things outside your “comfort zone”.
  • As I said in my The X in VCDX posting, try to show that eXpert level of knowledge by maybe showing that something needs to follow a particular route, but if that isn’t possible, then there are alternate routes, but you didn’t recommend that because of x, y and z.
  • KEEP IT LOGICAL
  • KEEP IT LOGICAL. Yes, I’ve done it twice, as again, far too many times in mocks, I have seen people go from getting a few requirements to custom network configurations in a matter of seconds. A good architect will keep it in the conceptual and logical, and whilst the answer is VMware, it doesn’t mean you need to go into deep technical configurations as that is what a VCAP level person does. A senior consultant would do on a project, not the lead architect you are trying to prove you are.
  • Listen to what the panellists are saying; this is true in both phases of the defence, but despite what people believe, 99,9% of panellist want to see you pass (I don’t know the 0.1 ). They aren’t giving you answers to trip you up, and it’s possible and probable they are trying to get you to show skills in an area so they can score you on it ideally at a good level.
  • I would recommend reading Rene and Larus’ postings above to read Josh Odgers VCDX Defence Essentials – Part 2- Preparing for the Design Scenario posting.

The design scenario shouldn’t be a nerve-wracking experience, and I believe from my experience in my defences that the more I practiced, the less nervous I was and the more it felt like I was doing another mock. There is a reason in so many professions people practice drills so that when an event comes, despite them being nervous or full of adrenaline, their training and practice comes through.

Gregg


Leave a comment

VCDX Prep Advice Series – The Mentor/s

For every VCDX round, I normally run unofficial face to face mock as the last hurdle and prep for all those defending the VCDX that round in the UK and for anyone wanting to come to assist with the mocks and learn from them. I have run these for a number of years and have got really great feedback from them but last year alike to so many things I was unable to run any due to Covid and who knows if I can this year. So I thought I would do an updated series of postings around the advice I normally give in these mocks, advice I give in the VCDXPrepGroup slack channel I founded and run and link to postings where I summarised previous advice. I will break the series into distinct areas along the path to VCDX to try help people wherever they are along the path *NOTE* All advice here is keeping within NDA’s and despite me now being a VCDX panellist it is the same as when I wasn’t one.

I want/need a mentor but how do I find one?

VCDX mentorship splits opinions as I know of several VCDX who did the track without a mentor and there are people like myself who had a few mentors to help me with advice and mock with me once I had my design submitted and I was getting ready to defend.

The first and official place to look for a VCDX mentor is at VCDX.VMware.Com and select the mentorship flag. I would recommend not limiting it just to people within your geography and time zone as I personally had one mentor in Australia another in Saudi Arabia and another in the USA. I personally believe having a few gives you different perspectives, naturally each will have skills in different areas and it allows you to have catchups possibly in your morning but their evening when they have time outside of work to chat with you.

Another great place is to ask on Twitter and add the VCDX hashtag to your message as not all people who are willing to mentor have the flag on the VCDX page as many don’t want to let someone down by saying they can mentor and then feel they can’t allocate the time to assist.

One of the main reasons I created the unofficial VCDX Prep/Study Group slack channel is to allow people to be in contact with many people who are mentors both officially and unofficially as well as people who are also aiming to obtain the certification so that ideally their questions are answered. Also akin to myself, there is VCDX panellist in the group who can give generic NDA permitting advice.

The role of a mentor

Mentors are naturally VCDX who have chosen to set the flag for being a mentor and are not panelists as panelists are not allowed to be mentors due to them knowing the scoring rubric used for the scoring of the designs for invites to defence and scoring of the defences.

There is no official guide for being a mentor and therefore each mentor will give the best advice and guidance they can give whilst base it on what worked for them personally and if they have been a mentor for a while then what advice they gave previous mentees who have succeeded. This again is another reason I created the study slack group so that different perspectives could be shared as there are many ways to pass and you have to work out what works for you.

Below to ideally clarify some views I’ve seen over the years of people being upset that they emailed a mentor and they didn’t respond or they did but the person felt the mentor didn’t give them the level of guidance they had hoped for I have listed some points around mentorship in no particular order:

  • Mentors are not there to walk you through every single piece of your submission and handhold you, you have to own your design/submission and the best mentors, in my opinion, direct you in the right direction and let you learn or else you’ll get to the defence and fail as you don’t understand half of the design because you didn’t learn it on your own.
  • Mentors have a day job and are very likely to have a very busy and demanding job never-mind they also want to have time with family etc so if a mentor can only do a few hours a week with you then you as the mentee need to utilise that time to the best of your ability to get the most out of it. Again, this is why having multiple mentors is beneficial IMO and why the prep/study slack group is helpful as you can ask a question and a whole host of mentors based in all time zones can give you advice.
  • If you don’t use Twitter then I would recommend getting yourself an account just to maybe tweet out asking for a mentor and seeing who might be available to assist you. Sometimes people don’t set themselves as mentors but are willing to privately do a review for you or a few mocks.
  • The design and submission are yours and all VCDX and those who have defended have signed an NDA so they can tell you their experience but can’t tell you about the design scenarios etc. There are ample blog postings out there from myself and numerous others that give generic advice that should help you prepare more than enough to pass but this is your journey no one else’s and like someone training for a marathon people can give you advice of how they trained and prepared but it is your race.
  • I have had people ask to join my slack group and normally what I ask is if the person is really aiming to defend within the next twelve months as the group will be what you make it, no one is going to run after you to ask you to do mocks or send out your design for review before submission.
  • Linked to the above if you want a mentor to review your design don’t send it for review a few days before submission as I have done far too many reviews where I have had to review the submission in a very short space of time and it’s heartbreaking for me and I’m sure other reviewers to find issues and then feed that back which stresses the person due to submit even more to try to fix it.

All the above is my perspective and from my experience, I know people who never had a mentor and passed and I commend those people but I believe if you can practice and prepare yourself before submission and before defence then why wouldn’t you take that opportunity. I know how stressful it was to send out my design for review as you worry people will look at your design, find an error and think less of you (this is how I felt at least) but rather you find those issues now than your design not being invited to defend or you are found out in the defence. I see sadly far too many people only defend once as they have burnt themselves out and can’t bring themselves to submit again.

Gregg


Leave a comment

VCDX Prep Advice Series – Building your submission

For every VCDX round, I normally run unofficial face to face mock as the last hurdle and prep for all those defending the VCDX that round in the UK and for anyone wanting to come to assist with the mocks and learn from them. I have run these for a number of years and have got really great feedback from them but last year alike to so many things I was unable to run any due to Covid and who knows if I can this year. So I thought I would do an updated series of postings around the advice I normally give in these mocks, advice I give in the VCDXPrepGroup slack channel I founded and run and link to postings where I summarised previous advice. I will break the series into distinct areas along the path to VCDX to try help people wherever they are along the path *NOTE* All advice here is keeping within NDA’s and despite me now training to become a VCDX panellist it is the same as when I hadn’t gone through the training.

The mysterious VCDX Design

I hear from a lot of people about various challenges and hurdles in building their design and below are the main ones:

  • Ive Never seen a “VCDX Design”

When I defended my first VCDX I received a fair few messages from people asking if they could see my design as they too wanted to submit but said they have never seen a design that got invited to a VCDX defence. What I shared instead was the table of contents so people can possibly understand the flow (in my personal opinion) a good design should have. I have posted screenshots below of my table of contents from my actual VCDX-DCV submission and there is also the blog posting Derek Seaman posted a while ago around this exact topic. Every person and design is different but outlines like Derek and I’s are relatively the outlines most DCV designs follow that have a good flow from conceptual to logical to physical and cover all the pillars.

  • I’m waiting for the right project before starting my design.

This partly refers to my first posting and how I always tell people to just get started. It is highly unlikely you will find the right project and for most people, I’ve spoken to and including my own, your design will normally be a merger of two or more designs where maybe for the main design the customer didn’t ask you at that point to add certain features until later phases or not at all but you added them to your design to show you design skills and the lessons you learnt from another project which had those features are now in this design.

Basing it on real-world projects helps you refer to those real challenges you had that will come to light when you have to defend your design and I can’t even remember what was and wasn’t in the main project that I based my design on as after a while it became its own sole project.

  • I haven’t passed my VCIX yet

Whilst you need the VCIX in your chosen track before submitting there is no reason you can’t start building your design whilst getting the certification as it takes a fair amount of time and effort to build your submission and you don’t want to wait until you have your VCIX and then realise it might take you much longer than you planned to build the design and submit. I have seen far too many people sadly lose the motivation at this point.

  • My customer/company won’t want me to use my current design.

This one is a tough one sometimes and I want to say that for high-security customers you should get approval before submitting as my normal advice to people for this is that you can sanitise the design and change all the name to something generic which is actually fairly common for people to do but if it is military or government this is normally not enough so do get it checked.

Sanitising your design is fairly easy and most companies outside the edge cases I mention above are fine as long as you remove their names and their information from the design and normally if they review it to ensure they feel it has been done sufficiently. The designs are only shared with those scoring the designs as well as your panellists if these are different people and once your defence is completed these are removed so no one has them.


1 Comment

VCDX Prep Advice – Building your submission

For every VCDX round, I normally run unofficial face to face mock as the last hurdle and prep for all those defending the VCDX that round in the UK and for anyone wanting to come to assist with the mocks and learn from them. I have run these for a number of years and have got really great feedback from them but this year alike to so many things I was unable to run any due to Covid. So I thought now I have a chance to catch my breath after my first year as a VMware employee I would do an updated series of postings around the advice I normally give in these mocks, advice I give in the VCDXPrepGroup slack channel I founded and run and link to postings where I summarised previous advice. I will break the series into distinct areas along the path to VCDX to try help people wherever they are along the path *NOTE* All advice here is keeping within NDA’s and despite me now training to become a VCDX panellist it is the same as when I hadn’t gone through the training.

I don’t know where to start

Building your VCDX submission can seem a massively daunting task and the more you work on it the larger it seems to get but my first piece of advice I always give people is to just get started as soon as possible.

  • Start with the conceptual design and ensure your requirements are clear and concise and verified. Far too often I have done reviews for people and sadly they haven’t recorded the requirements very well and have built their design around these but because they aren’t clear it can make their design fall apart fairly quickly with very simple questions. One example I see often is people not recording availability and recoverability correctly where they have a requirement of 99.99% availability but it isn’t clear what this applies to and when. You need to ensure of you have SLA’s, RPO’s, RTO’s and MTD defined that it is very clear where this does and does not apply.
  • Once you have completed the conceptual design get it reviewed before moving onto logical. Like above I see it far too often where people don’t have their requirements clearly defined and to then change it at a review a week before submission deadline is nigh on impossible. Getting someone to have a quick review of them will then help you ensure you have them defined well and is something I see far too often in real life where requirements are defined clearly and then the customer isn’t possibly happy as you misunderstood their requirement. For this, I did a Requirements Traceability Matrix for my defence and I use one on all major projects I work on to ensure that the requirements I have recorded and got approval for can be tracked all the way to the verification tests at the end of the project. This RTM is one part I changed about my design after my first VCDX failure as blogged about here: What Changed Between My Two VCDX Design Submissions
  • Get yourself a mentor and into a good group of people also aiming for the VCDX. When I did my first VCDX I didn’t have a mentor and I built the whole design “alone”. By chance when I had to pay for my VCDX design review the link to pay didn’t work and when they sent a new link they included the other people also submitting and even though I knew Bobby Stampfle was submitting I didn’t know Rene Van Den Bedem (Quadruple VCDX) was going for his first. Out of this, we three built a study group that became the basis of my now pretty successful VCDXPrepGroup slack channel. The amount I learnt from those two in that first defence is why I made the channel and the number of people who have benefited from all the help those in the channel provides from NDA permitting advice to mocks to design reviews I personally feel is invaluable. I know there are people who have passed without a prep group but why not use a good group of people who have gone through the process already to soundboard off of and who understand the grind and can show you the journey you are on is worth it (in our opinions). If you are really looking to defend within the next twelve months then please contact me and I will add you to the Slack channel. (realistically is if you at least have your VCP and one VCAP in your planned track and are planning to do the second VCAP and start your design very soon if not already)

In the next posting, I will cover off something I hear often and have heard from numerous people over the years of “I am waiting for the right project”. If you want me to cover something then please do leave a comment or message me on Twitter @greggrobertson5 and I will try to incorporate it into this series.

Gregg




Leave a comment

AWS Cloud Practitioner

This morning I sat the Amazon Web Services Cloud Practitioner exam and I am very pleased to say I passed it. The exam is meant to be an entry level one to introduce people to core products and services AWS offers and what each of them does.

The resources I used for the exam are the following although I do have to say that I passed my AWS: SA Associate a few years ago so I wasn’t starting from scratch:

Now to prepare for my VMware Cloud On AWS specialty and then AWS: SA Professional.

Gregg


Leave a comment

VCP7-CMA 2019 Obtained

Yesterday after a few weeks of studying during my spare time (which is limited due to work and family) I sat the VCP7-CMA and am pleased to say I passed Smile I do have to give a disclaimer though that I was white labelled VMware PSO for a number of years and delivered enterprise level vRA deliveries and attempted but sadly failed my VCDX6-CMA two years ago so I didn’t start with zero knowledge.

Resources used

Due to having worked with and used vRealize Automation in my past my studying focused around reminding myself of pieces seeing as I haven’t touched vRA in almost three years and also updating my knowledge on some of the recent changes. I largely used the study resources listed on my blog here: https://thesaffageek.co.uk/vsphere-6-x-cma-study-resources/vcp6-cma/ but read and watched the “what’s new in vRA7” videos and blog postings out there as well.

The exam I found didn’t really require you to have any real world hands on experience and if someone read all the recommended resources I think you could pass it.



The exam

The exam consists of 85 multiple choice questions and you have 90 minutes to do the exam. I got a 355 out of 500 and I know I got ones wrong where it asked you console questions where unless by chance you’ve used it recently you’d have to have an educated guess like I did. The questions aren’t very long and only one or two were worded a bit strangely. I took my time and reviewed a few questions at the end where I had marked them if it took me more than a minute to decide an answer.

Good luck if you are looking to take the exam, I think it’s more than achievable and the recommended resources will give you a good idea what to learn and also set you up in the event you want to start using vRA.

Gregg


2 Comments

#VCDX Design Scenario “Tips”

Yesterday I ran some face to face mocks at Dell EMC’s offices in Brentford UK and during part of those at the end we discussed the design scenario and what i recommend people practice. I have partly mentioned some of it already in a posting i did after the last face to face mocks here. Additional to that I was showing those people that were going to defend this coming week the plan I had around the things I wanted to ensure I asked and also what I felt I needed to keep in mind during the design scenario. Now i have to make it clear I am not a panellist nor have i seen nor know the rubric the scenario is scored on but what worked for me at least are the following:

Question any information that doesn’t make sense!!!!

Compute

1. NUMA aware applications/OS’s?

2. If not how wide is the VM that is not NUMA aware?

3. Amount of growth?

4. Total vCPUs? Divide that by 5

5. Peak GHz for CPU?

6. Peak RAM for Memory?

7. PCIE connected hardware or USB dongles?

8. Rack or Blade? If blade are they half or full and logical diagram spreading across chassis. FDM mention

9. What kinds of applications are on these servers?

10. Scale up or scale out? N+ value

11. Right size VM’s after conversion

12. Add N+ value



Storage

1. FC,FCoE,iSCSI,NFS,VSAN,vFRC

2. Existing Tiers of Storage?

3. Amount of Free space? Is this dedicated to the project? How long is the support for this?

4. PEAK IOPS

5. Average IO size

6. Read/write ratios

7. SP speeds? Active passive,active active, ALUA?

8. Standard access switch and core setup?

9. Speed of existing FC switches if applicable?

10. Existing HBA’s? speeds of these HBA’s?

11. Software or hardware initiators?

12. CHAP?

13. IOPS, Amount of required storage?

14. Amount of growth?



Network

1. Traditional or CLOS?

2. North/south or East/West traffic?

3. vSS,vDS on N1KV?

4. Hybrid or vDS only?

5. 1GbE or 10GbE?

6. Converged Network Adapter or 10GbE?

7. Peak network throughput required?

8. Speeds of Network Switches

9. MTU for Jumbo frames 9000



VIM

1. HA and DRS? (limit 32 hosts and 3000 VM’s)

2. Dedicated management cluster?

3. Virtual vCenter or VCSA?

4. Linked Mode?

5. vCenter heartbeat

6. VUM and UMDS?

7. BC/DR?

8. vCenter design to separate vCenter from DB



I also did a second prep list that is very much alike to the one above but some slight addtional parts and for the cenceptual were the questions i had made a sentence out of to remember to ask them as i felt they gave me a good start and it was what i asked myself during each practice of the design scenario so when i did it in the defence it just felt like another practice and so calmed my nerves



Conceptual

  • Pick out the main objective of the project (design a cluster for the migrated workloads)
  • Write down all other requirements ,assumptions ,risks and constraints
  • Availability Requirements? <- if over 99.9 then warn of additional costs
  • N+ requirements
  • If existing hardware then how old? Is it dedicated to the project? What speeds and free space does it have? Processor family? NIC speeds? Room for growth? Anything missing that is required (HBA cards or 10GB NICS)
  • Consolidation and containment seem to always come up so ask about the steps for migrating the servers to vm’s and minimizing the risk of server sprawl….
  • Licencing?
  • Budget?
  • BC/DR? <- How soon is the requirement for the failover site and is the site even built? Distances and latency if already built



Compute

  • Total number of CPU’s <- Question/highlight if really high or low
  • Are applications/OS’s NUMA aware? What is the largest non numa aware vm?
  • Calculate number of required hosts
  • Very quick mention that could work it out with Peak CPU and Peak RAM also but DON’T DO THIS CALC
  • Add N+ to the total number and make sure the cluster doesn’t go over 32 or 3k vm’s (This was applicable to my vSphere 5.0 design where the limit was 32)
  • Right size VM’s after conversion



Storage

  • Peak Storage ,Peak IOPS,Average IO,Read/write? <- Question/highlight if really high or low
  • Storage Protocol?
  • Active/Active, Active/Passive,ALUA?
  • Different workloads require different tiers of storage?
  • Allocate RAID levels to different tiers



Network

  • Traditional Core access switch setup?
  • Total Peak throughput <- Question/highlight if really high or low
  • North/south and east/west
  • 1GB or 10GB
  • CNA or 10GB
  • vSS,Hybrid or VDS based on licencing question and on amount of required throughput and storage protocol



VIM

  • HA and DRS with the N+1 portion from earlier included
  • If avail was high and they keep to it then vCenter heartbeat
  • Dedicated Management Cluster
  • Separation of database and vCenter for resiliency
  • vSphere licences from conceptual questions


Leave a comment

#AWS : Solutions Architect Associate Achievement Unlocked

aws-sa-logo

This morning I sat the AWS: SAA exam and I’m pleased to say I passed it Smile.I used a plethora of resources to prepare for the exam as I have to admit that I underestimated the exam a month ago and thought I would just need a general knowledge of the features and was getting full marks on the acloud.guru practice exams but failed it by ~ 3% percent. I’m not going to list all the resources I used in my preparation as I have already listed them on my blog under my AWS Certified Solutions Architect – Associate Study Resources page. All of the resources listed were really really good and I would highly recommend not just doing the CBT training but also do the labs and spend time using the free tier to go thorough all the features and learn what they can and can’t do. The exam is made up of sixty questions and the blueprint lists the split of the different domains as per the below table:

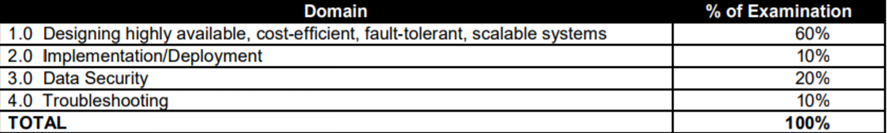

As you can see from the breakdown the exam is largely about designing a highly available, cost-efficient, fault tolerant scalable system. The questions in the exam varied from relatively straight forward ones where you just had to know what a solution or service provided to more complex ones where a scenario was portrayed in the question and you had to define which 2-3 answers together enabled them to achieve their requirements. Based on my score I am taking it that the ones that required multiple answers didn’t give partial scores if you got one wrong which is akin to a lot of other IT exams so you certainly have to focus on your answers as I found even with eliminating answers I knew were wrong I was still left with a very close alternative.

For the study resources I would recommend watching the vBrownbag series as well as the CBT’s and doing lab work as there were certainly a few things mentioned in there that were directly helpful in the exam. It’s also really great in my opinion to hear about bits from others in the community using the technology.

Good luck if you are preparing for the exam, I’m tempted to keep the momentum going and now do the AWS Certified Developer Associate exam.

Gregg


Leave a comment

Why you should attend VMworld US

VMworld US is just around the corner (58 days to be exact) and I have been graciously allocated a bloggers pass for the conference and given backing from my company Dell EMC to attend. This will be my sixth time attending and my third time attending the US one. VMworld has something for everyone from those just learning about virtualisation to those who have been part of the industry for a number of years and are looking to those in depth sessions and discussions with the evangelists and guru’s of VMware plethora of offerings and solutions. If you haven’t yet booked your place then let me list some of the reasons I think you should attend as they are the reasons I try to attend every year:

  • On the Sunday of VMworld is Partner Exchange and TAM day where VMware partners can attend exclusive sessions talking about everything from future roadmaps for all of VMware product lines but also new solutions VMware are looking to release. The sessions are always extremely interesting and from my experience are the best chance to speak to the “rockstars” who evangelise and breath the various solutions. If you aren’t a partner or are looking  for something community driven then the vBrownbag crew along with the VMUnderground crew are again running opening acts and then the VMUnderground party in the Evening (unfortunately the party tickets are now sold out). I will be attending opening acts and have actually submitted a panel idea that I hope will be accepted.

vbrownbag

  • My next reason is about the community again but this time the ability to network with like minded individuals at the bloggers tables, fellow vExperts, fellow VCDX at the VCDX townhall on the Saturday before VMworld and all those I hope to meet over lunch and at the vBrownbag TechTalks who are working in collaboration with the VMTN team to run the infamous TechTalks. If you have never heard of the TechTalks then a brief overview is below:
    • Tech Talks originated at VMworld 2012 where they provided an opportunity for community members, whose presentation submissions were not accepted into the main catalogue, to present the core of  a topic.  #TechTalks are a ten minute presentation by a community member for the benefit of the community. Since almost everyone working in technology has solved problems and learned something almost everyone could present a #TechTalk.  The format can be a slide deck or simply talking, they are usually about how to solve a problem or get the most out of a product. The TechTalk is captured on video and published on the vBrownBag YouTube channel.
    • If the conference Internet connection allows, the talk is also live streamed from the show.
    • #TechTalks are for community members to reach other community members, any topic that will help other people is good.  The one thing that TechTalks are not is an opportunity to present the corporate slide deck about a great product you would like us to buy.  #TechTalks are about up skilling and education, the only marketing should be from the TechTalk sponsors who help make the whole thing happen.
  • Next are the breakout sessions, group discussions and expert panels. The content catalog is now live and it is packed with amazing sessions by some of the biggest names in the industry and those up and coming in the industry. I’m personally really looking forward to all of the VMware Cloud on AWS sessions as it bridges my existing knowledge and interest in VMware with my exponentially growing interest in AWS. The sessions are also recorded so if you can’t make it to a sessions due to a conflict then by registering for VMworld you get access to all the recorded sessions after the conference for you to watch in your own time.
  • My next reason are the VMware Hands-On Labs which cover all VMware technologies and allow you to play with the latest releases and offerings not just from VMware but also VMware partners. Alike to the sessions the hands on labs are available after the conference but I would recommend going to a few that really interest you (again I’ve allocated some walk trough’s of the VMConAWS solution) and then you can do the remaining ones after the conference. If however you really want to hit the labs hard then I know they normally give a free pass to next years VMworld to the top few people who have completed the most labs.
  • The solution exchange is my next reason as this is the perfect opportunity to speak to those vendors who are offering the latest solution that might save your business and team loads of money and or time and this is the perfect opportunity to speak to that vendor who might be offering the solution that will fix the issues your company is experiencing and take that knowledge back to your company and impress your management with how you’ve found a great solution and to prove that your going to VMworld was worth it and that they should send you again next year. I would be remise if I didn’t encourage you to go speak to Dell EMC and hear about their amazing offerings all the way through the stack as well as pre-packaged and validated solutions for SMB’s all the way to large enterprises.
  • If you are looking to obtain that next VMware certification or want to speak to the certification team about the performance of your latest VCAP-Deploy exam then there are loads of  VMware Certification opportunities. You can also book reduce cost exams at VMworld which I have personally never decided to do but loads of the community swear by it and due to the reduced cost it means if you unfortunately don’t make it then it isn’t that much of a dent to your pocket and lets you scope out the exam to better prepare for next time.
  • Last is the parties and due to the conference being in Vegas you can imagine the amount of them there are and the amount of meet ups after the parties that happen.  There are parties for everyone so if you are looking for a chilled drinks evening then there are loads of opportunities for that and if you want to party all night (save some sleep to be able to attend the conference) then there are plenty of those as well. If you haven;t got a ticket to VMUnderground on Sunday then the Welcome Reception kicks off the conference experience with food, drinks, and networking in the Solutions Exchange. There are normally loads of announcements about the parties closer to the time so keep an eye out on social media as the parties fill up fast and remember the strip is big so unless you plan to uber it then getting to three parties in a night might not be possible. The VMworld party finishes off the conference on Wednesday night, the venue hasn’t been announced as far as I’ve seen but he bands have been and teenage Gregg is super excited about it as  Blink 182 and Bleachers will be performing. Last years aprty at the Las Vegas Motor Speedway was really fun and fall out boy were awesome in my opinion

If you are looking to attend then sign up here https://reg.rainfocus.com/flow/vmware/vmworldus17/reg/account?src=so_590b899c53598&cid=70134000001K6I4 and make sure to come find me and say hi as well as i encourage you to attend the TechTalks which are due to be added to the content catalog very soon.

Gregg


3 Comments

VCDX Preparation Advice

Yesterday I ran  face to face VCDX Mock sessions for three people defending their VCDX at the Dell EMC offices in Brentford. During the NDA permitting discussions a number of questions came up around the outlines of VCDX designs,advice for the design scenario, things to read/watch from others who attended who are looking to submit soon and I thought I would put out a quick posting around the advice given to hopefully aid people also looking to submit soon.

  • What does a VCDX design look like?
    • I get this question often and I know a large number of other VCDX do as well. People might not have seen a “VCDX Level” design before and so are unsure what they need to produce. It is highly unlikely a VCDX will send you their submission as with the invested time as well as the high likelihood of their customers name and information being in the submission. But one portion that is possible to share is the table of contents so people can possibly understand the flow (in my personal opinion) a good design should have. I have pasted screen shots below of my table of contents from my actual VCDX-DCV submission and there is also the blog posting Derek Seaman posted a while ago around this exact topic. Every person and design is different but outlines like Derek and I’s are relatively the outlines most DCV designs follow that have a good flow from conceptual to logical to physical and cover all the pillars.


  • How do I prepare for the design scenario as I’ve spent 98% of my time preparing for the design defence portion?
    • I’ve seen this ALOT and depending on your experience this can be where a lot of people fail their defences (I base this on having done design scenario mocks with people but obviously have no actual proof in the real defences). I made this mistake in my first VCDX attempt and even though I had done ones at customer numerous times before, due to the time constraints a relatively unusual way you don;t know anything about a customer and design before doing a design workshop this can be a new skill to learn but one I now use for most customer engagements I have. The way I learnt and prepared for this for my second attempt was:
      • Have a “script” you plan to follow to ask the right questions early on to gleam the information you need and how to manage you time to cover all the pillars in the time allocated for the design scenario. The best method IMO is one blogged about by Rene van den Bedem. Rene created this when he was preparing for his second VCDX attempt and i was preparing for my first.  The questions and whiteboard layout are a great idea and allows you to collect and record information whilst allowing the panellists to see your thinking and your very important whiteboarding skills.
      • Stemming off of Rene’s method above Larus Hjartarson who had Rene as his mentor took the method one step further and blogged about it here. I used Larus’ method in my second defence preparations and recommended it highly yesterday as it allows you to really show your skills and get your diagrams logically drawn up on the whiteboard by the end.
      • Get yourself a whiteboard and practice it again and again and again. there are a number of example design scenarios out there that you can use and adapt. I would use some as a starting point but would change the answers i was expecting the panellists were giving me or changing the answer they gave me half way through to practice how I could look at what i had written down and drawn and change it due to that requirement change. Certainly practice talking about what you are doing on the board and continually ask questions to try gleam out information but make sure you have good reasons to ask those questions as sometimes the panellists who are role laying as customers might have to email someone to get the answer to your question.
  • VCDX’s are floating brains and I’ll never be that good
    • Some people think that to obtain the VCDX you have to be an unachievable rockstar who can provision via mindcontrol and whilst there are some big names from the community who are also VCDX certified what I tell people is that all these people were in the same place they are but with work and dedication they learnt and practiced and proved they had the skills and knowledge to obtain the VCDX. From yesterdays mocks a number of the guys who are looking to defend over the next few defences said what easy going and normal people the four VCDX were and whilst that’s very nice of them to say I feel it lends itself to the point that people who have passed the exam are no different than anyone else and that anyone can pass it with time and effort. I give the same advice to those defending that they have to remember that they belong in the defend room and that the panellist were at the same place they are and to think of them as their peers. 99% of VCDX are really nice humble people who are really happy for more people to join the ranks and try with what spare time they have to share the knowledge and help those looking to pass it realise that it isn’t an insurmountable mountain. But no one will carry you and what might come across at points as someone not being willing to help is that for you to learn the most and really get value out of the journey (more about my feelings about doing it for the right reason here) you need to do it yourself and by someone carrying you it won;t help you nor the program to have “paper” VCDX even though the defence should make this pretty clear.
  • I’m waiting for the right project to come along before I start working on my VCDX submission
    • I hear this one often and certainly see it quite a bit on slack channels I’m part of as well as twitter. I don’t believe a perfect project will ever come along, there are certainly projects that can cover a good portion of the bases but I know a number of VCDX including myself who supplemented existing designs they had done to fit the blueprint or to show their architect abilities and a number of VCDX who merged a few projects together as if it were one so that they could still speak to real experiences they had around the designs and not have the challenge of remembering a fictional story. There are also a number of people who passed with fictional designs but even for these they state they related back to previous project they had been on where customers asked for the portions. I recommend getting started right away especially due to the timeframes it might take you to build a design if you are doing it in your spare time.
  • I’ve got a wife/young kids/I travel a lot/I have a full time job/all of the above
    • I hear this often and I do hear where people are coming from but for me it is like anything people state they want, how badly do you want it as if you realistically want it bad enough it’s amazing what time you can find to do it. When i was preparing for my second VCDX attempt i used to watch two different YouTube videos https://youtu.be/scr2PrcDxEo https://youtu.be/Ofo2lv9-nVY to remind myself and question myself how badly I wanted to pass it and also due to my having failed the first time and that I couldn’t bring myself to not complete what I had started. When i did my first defence i had a six month old daughter who would only sleep 3-4 hours a night, I have a wife, I had a full-time job on a challenging project and I needed to do things for myself so I didn’t go insane but i found the time to submit and for my second time I was flying to Rotterdam and was out there for three days a week on a high profile project but I made the time to study on the plane and trains back and forth each week and studied in the hotel room. I studied and worked on my design an hour before work started and after my daughter went to sleep. I’m not saying I’m anything amazing at all all I am saying is if you realistically look at your time you’ll find opportunities to do it and lie the Eric Thomas video I mentioned above you question yourself do I want it more than X and very often you’ll work out what’s really important whilst still spending time with significant others in your life, working successfully and not burning yourself out.
  • The more I learn for the VCDX the more I realise how little I know
    • Welcome to the club. As I covered above about doing it for what i believe are the right reasons the VCDX journey will expose you to so much technology and options and people who have experience in so many things you might have little to no experience in. You will learn LOADS along the path to VCDX and I will be honest with you even after passing the VCDX I realised how little I still knew and how much I still had to continually learn. The below image explains this for me perfectly


    • I have massive imposter syndrome around being a VCDX and I have spoken to numerous others who say the exact same thing. I’m not sure if it will ever go away and I think it’s a very common thing so if you think being a VCDX means you know everything and don’t experience the feeling of having to “fake it until you make it” then it just is not true, no one can know everything and everyone is having to continually learn new things and there will always be people who know things better than you do, it’s the profession we’ve chosen to be a part of. A great piece I saw recently about imposter syndrome from Neil Gaiman is the below:
    • imposter

If you are looking to do the VCDX then I would highly recommend it, certainly speak to your significant other around the work that needs to go into it as it does take dedication and depending on your progress for a submission package and your skillset can require you to spend time learning but with dedication and work it is certainly achievable.

Good luck on your journey and I hope some of the advice above helps.

Gregg
